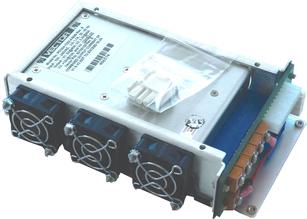

92100184 Embedded Power Supply
Power Supplies
Power Supply specifications are subject to change.
Many others are available up to 1,500W.
Please contact us at 1-800-423-5659 or e-mail us at inquire@vectorelect.com
Plug-In Power Supplies
92100163 Embedded Power Supply
AC input versions : 90-264VAC, 47-63Hz, single phase
Add suffix "H" to part number for Power Supply with Horizontal silkscreen markings. e.g. P/N : 92100139H is with Vector logo and Power, Fault markings silkscreened horizontally.
| Vector P/N | Total Watts | Size (H x W x D) | V1 | V2 | V3 | V4 |
|---|---|---|---|---|---|---|
| 92100117-01 | 200 | 1.83" x 5.61" x 8.33" | 5.0V @ 30.0A(1) | 3.3V @ 25.0A(1) | +12V @ 6.0A | -12V @ 1.0A |
| 92100139-01 | 300 | 1.83" x 5.61" x 8.33" | 5.0V @ 40.0A(2) | 3.3V @ 40.0A(2) | +12V @ 10.0A | -12V @ 2.0A |
| 92100163(*) . |
800 | 1.60" x 5.00" x 10.62" | 5.0V @ 80.0A | 3.3V @ 36.0A | +12V @ 18.3A | -12V @ 18.3A |
| 92100170 | 1000 | 1.60" x 5.00" x 10.62" | 5.0V @ 120.0A | 3.3V @ 36.0A | +12V @ 18.3A | -12V @ 18.3A |
| 92100184 | 1000 | 1.62" x 5.00" x 10.69" | 5.0V @ 108.0A | 3.3V @ 36.0A | +12V @ 20.0A | -12V @ 20.0A |
(Discontinued)
| 92100116 ____________ | 200 | 3U x 8HP | 5.0V @ 33.0A(1) | 3.3V @ 33.0A(1) | +12V @ 6.0A | -12V @ 1.0A |
(*) Replacement P/N : 92100184
Embedded Power Supplies
Accessories
Features
| 92100115 | 200 | 3U x 8HP | 5.0V @ 33.0A(1) | 3.3V @ 33.0A(1) | +12V @ 6.0A | -12V @ 1.0A |
| 92100115B | 250 | 3U x 8HP | 5.0V @ 33.0A(3) | 3.3V @ 33.0A(3) | +12V @ 6.0A | -12V @ 1.0A |
Ordering Info
| Vector P/N | Total Watts | Size | V1 | V2 | V3 | V4 |
|---|---|---|---|---|---|---|
| 92100117 | 200 | 3U x 8HP | 5.0V @ 30.0A(1) | 3.3V @ 25.0A(1) | +12V @ 6.0A | -12V @ 1.0A |
| 92100139 | 300 | 3U x 8HP | 5.0V @ 40.0A(2) | 3.3V @ 40.0A(2) | +12V @ 10.0A | -12V @ 2.0A |
| 92100142 | 500 | 6U x 8HP | 5.0V @ 50.0A | 3.3V @ 30.0A | +12V @ 10-15A pk | -12V @ 3-5A pk |
6U Plug-in Power Supply
3U Plug-in Power Supply
Ordering Info
DC input versions : 36-72VDC (48V nominal)
AC input versions : 90-264VAC, 47-63Hz, single phase, no minimum load
■ Standard PCI output Voltages : 5.0V, 3.3V, +12.0V, -12.0V
■ Hot swap, N+1 redundancy with internal OR-ing diodes
■ .99 power factor corrected AC 90-264V input
■ DC 36-72V (48V nom.), or DC 18-32V (24V nom.)
■ Current sharing on 5.0V and 3.3V outputs
■ Power & Fault LED indicators to faceplate
■ Excellent performance
■ Complies with all requirements of PICMG 2.11
■ Fully compliant with EU RoHS directive**
■ cULus, TUV, CE marked
■ Standard Telco (Type VII) handles or as specified
(1) Combined output current of V1 & V2 not to exceed 38.0A
(2) Combined output current of V1 & V2 not to exceed 50.0A
(3) Combined output current of V1 & V2 not to exceed 55.0A
(Discontinued)
92100117-01 or 92100139-01 Embedded Power Supply
DC input version : 18-32VDC (24V nominal)
